PLEXIS POS PAX SP30 PIN PAD TERMINAL SETUP


Plexis POS fully integrates Credit Card, Debit Card, EBT / SNAP Food Stamps and EBT Cash Benefits.

Obtain your Credit Processing equipment from your Merchant Services Provider.
We do not provide Pin Pad Payment Terminals or any other hardware and supplies.

Notice: DO NOT enable Partial Authorzations

PAX SP30 Pin Pad Terminal Internal Settings   Diagnostic Example in Plexis POS
1 Main Communication LAN
2 Backup Communication Dial
3 Maximum Tries 1
4 Connect Timeout 300
5 Lan Type Static
6 IP Address ex: 192.168.192.177
7 Subnet Mask ex: 255.255.255.000
8 Gateway IP ex: 192.168.192.001
9 DNS MODE AUTO
10 DNS IP ex: 192.168.192.001
11 ECR CommType Ethernet
12 Communications Port 10009
13 Communication Protocol HTTP GET
14 Duplicate Checking ON (enable)

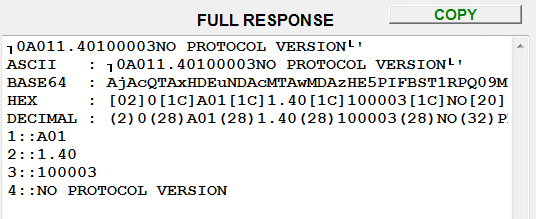

  Perform an Initialize Terminal command in the Plexis POS Diagnostic
utility and under the Full Response window you should see the
Pax Base Version in cell 2::

This example shows the Pax SP30 Base v1.40
Pax SP30 Pin Pad Terminal Supported Base Version

If you see this type information the terminal is communicating with Plexis POS properly. We have tested this terminal model using PAX Base v1.40 released by the manufacturer on March 3, 2023. Other PAX base versions may work as well but we do not guarantee or support them.

Press and release the "F" key.
Enter the password which is todays date (MMDDYYYY) and press the Green Arrow Key.
You may be prompted to enter the password multiple times throughout the setup process.




PAX TERMINAL COMM ERROR 100010
If you get this error when processing a card and you are certain all other settings are correct there is a good chance your router is blocking the Terminal IP address and port. Configure your router to allow access to the terminal as described below.

Router / Firewall Settings :
If you are connecting your PAX terminal through a router you will need to set Port Forwarding up for EACH terminal IP and Port connected to the router.

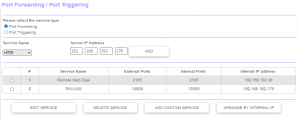

Port Forwarding Example :
Port forwarding example for a router
Click image for details
