PLEXIS POS PAX A35 PIN PAD TERMINAL SETUP


Plexis POS fully integrates Credit Card, Debit Card, EBT / SNAP Food Stamps and EBT Cash Benefits.

Obtain your Credit Processing equipment from your Merchant Services Provider.
We do not provide Pin Pad Payment Terminals or any other hardware and supplies.

Notice: DO NOT enable Partial Authorzations

PAX A35 Pin Pad Terminal Internal Settings   Diagnostic Example in Plexis POS
1 Main Communication WI-FI
2 Backup Communication ETHERNET - STATIC IP
3 Communications Port 10009
4 Communication Protocol HTTP GET
5 Supported Application
Application Version
BroadPOS TSYS Sierra
V1.03.33E_20220512

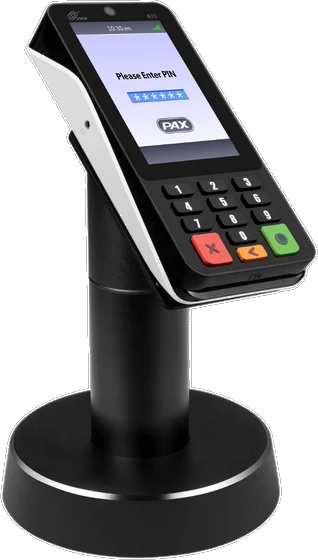

  PAX A35 Terminal integration with Plexis POS Click image on left
for a larger view.

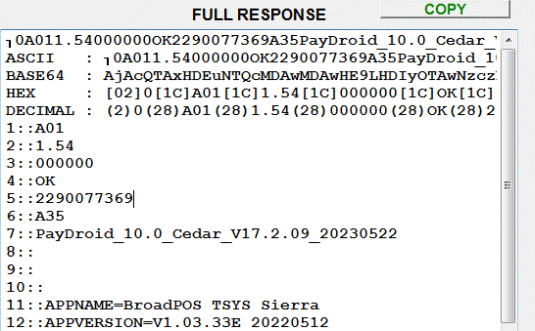

  Perform an Initialize Terminal command in the Plexis POS Diagnostic
utility and under the Full Response window you should see the
Pax Base Version in cell 2::

This example shows the Pax A35 Base v1.54
Pax A35 Pin Pad Terminal Supported Base Version

If you see this type information the terminal is communicating with Plexis POS properly. We have tested this terminal model using PAX Base v1.54 as released by the manufacturer. Other PAX base versions may work as well but we do not guarantee or support them.

Enter the setup mode for PAX A35 terminals by touching the
Setup Icon Gear and enter the default password which is "pax9876@@"




PAX TERMINAL COMM ERROR 100010
If you get this error when processing a card and you are certain all other settings are correct there is a good chance your router is blocking the Terminal IP address and port. Configure your router to allow access to the terminal as described below.

Router / Firewall Settings :
If you are connecting your PAX terminal through a router you will need to set Port Forwarding up for EACH terminal IP and Port connected to the router.
Port Forwarding Example :
Port forwarding example for a router
Click image for details
